Trigger a workflow when PR is created using Class and events in ABAP.
-------------------------------------------------------Creating custom class-------------------------------------------------------------------
Step 1: Create a custom class.
Step 2: Give the interfaces.
Step 3: Create an event with parameter E_F_BANFN type BANFN.

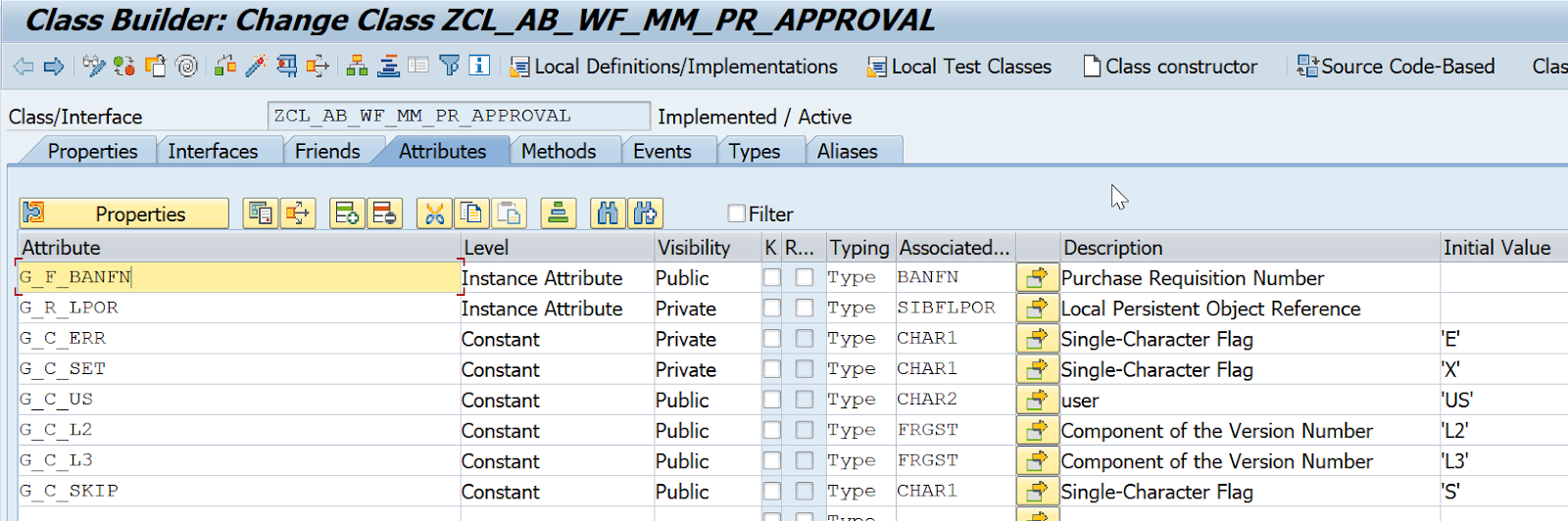

Step 4: Create attributes.
Step 5: Create constructor with importing parameter I_F_BANFN.
Step 6: Implement the constructor.
METHOD constructor.
DATA : l_f_instid TYPE sibflpor-instid.
l_f_instid = i_f_banfn.
g_r_lpor-catid = 'CL'.
g_r_lpor-typeid = 'ZCL_AB_WF_MM_PR_APPROVAL'.
g_r_lpor-instid = l_f_instid.
ENDMETHOD.
Step 7: Implement the method - BI_PERSISTENT~FIND_BY_LPOR.
METHOD BI_PERSISTENT~FIND_BY_LPOR.
* result = new zcl_ab_wf_pr_approval1( lpor ).
*- begin of local data
DATA: l_o_ref_doc TYPE REF TO ZCL_AB_WF_MM_PR_APPROVAL.
DATA: l_r_doc_key TYPE banfn.
*- end of local data
* instid is the key of the object
l_r_doc_key := lpor-instid.
TRY.
CREATE OBJECT l_o_ref_doc
EXPORTING
i_f_banfn = l_r_doc_key.
CATCH cx_bo_error .
*------ object not found
RETURN.
ENDTRY.
* Load the current instance to result
result = l_o_ref_doc.
ENDMETHOD.
Step 8: Implement the method BI_PERSISTENT~LPOR.
method BI_PERSISTENT~LPOR.
result = g_r_lpor.
endmethod.
Step 9: Implement the methods.
BI_PERSISTENT~REFRESH
BI_OBJECT~DEFAULT_ATTRIBUTE_VALUE
BI_OBJECT~EXECUTE_DEFAULT_METHOD
BI_OBJECT~RELEASE
Step 10: Save and activate.
Step 11: Create a method register_wf with importing parameter i_f_banfn.
METHOD register_wf.
DATA: :l_f_objtype TYPE sibftypeid,l_f_objkey TYPE sibfinstid,
l_o_event_parameters TYPE REF TO if_swf_ifs_parameter_container,
l_f_param_name TYPE swfdname,
l_r_msg_key TYPE scx_t100key,
l_f_id TYPE char10.
CONSTANTS : l_c_clsnm TYPE sibftypeid VALUE 'ZCL_AB_WF_MM_PR_APPROVAL',
l_c_event TYPE sibfevent VALUE 'CREATE',
l_c_011 TYPE symsgno VALUE 011.
* Setting values of Event Name
l_f_objtype = l_c_clsnm. " Your Class Name
* Instantiate an empty event container
CALL METHOD cl_swf_evt_event=>get_event_container
EXPORTING
im_objcateg = cl_swf_evt_event=>mc_objcateg_cl
im_objtype = l_c_clsnm
im_event = l_c_event
RECEIVING
re_reference = l_o_event_parameters.
* Set up the name/value pair to be added to the container
l_f_param_name = 'E_F_BANFN'. " parameter name of the event
l_f_id = i_f_banfn.
l_f_objkey = i_f_banfn.
* Add the name/value pair to the event conainer
TRY.
CALL METHOD l_o_event_parameters->set
EXPORTING
name = l_f_param_name
value = l_f_id.
ENDTRY.
* Raise the event passing the prepared event container
TRY.
CALL METHOD cl_swf_evt_event=>raise
EXPORTING
im_objcateg = cl_swf_evt_event=>mc_objcateg_cl
im_objtype = l_f_objtype
im_event = l_c_event
im_objkey = l_f_objkey
im_event_container = l_o_event_parameters.
ENDTRY.
COMMIT WORK.
ENDMETHOD.
-------------------------------------------------------------Creating workflow-----------------------------------------------------------------------
Step 1: Goto T-code SWDD.
Step 2: Click on create and save.
Step 3: Select workflow container and create fields.
Step 4: In our case creating pr number, instance for class, object for class and business object.
* PR number-- Importing and exporting.

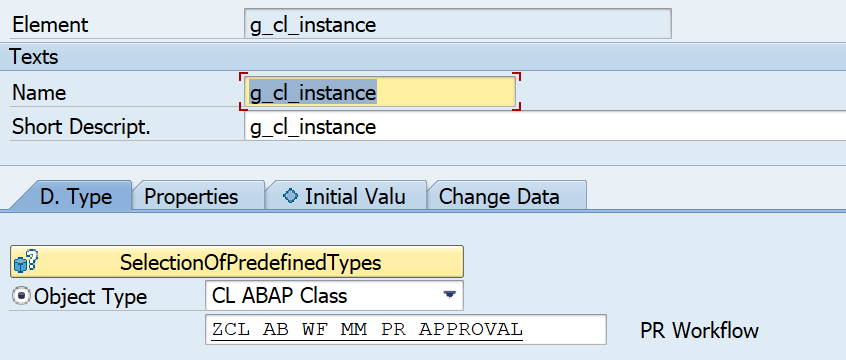

* Instance for class - Importing and exporting.

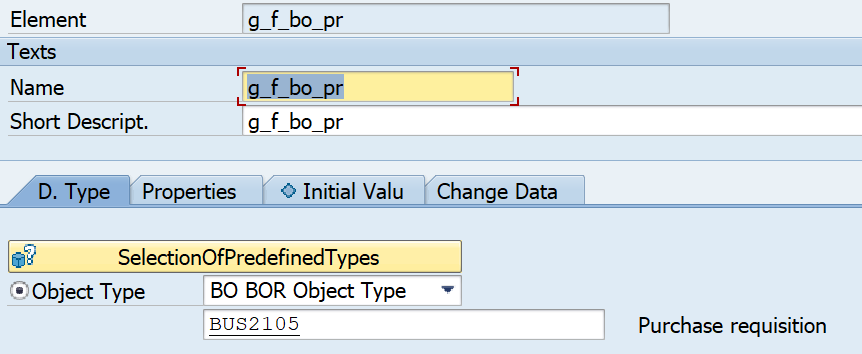

* Business object -- importing and exporting.
* Instance for workflow-- Importing and exporting.
* Create an extended field.
* Create object key field.
Step 5: Save and activate up to this.
Step 6: Click on GOTO --> basic data and click on starts event tab. Select category CL and give class name and event.
Note: Binding must be imp and active is also imp.
* Generate binding and activate the class.
* Save and back.
Step 7: Create activity for Workflow Linkage.
DATA: l_o_ref TYPE REF TO ZCL_AB_WF_MM_PR_APPROVAL.
*------ CREATE OBJECT l_o_ref( ).
CREATE OBJECT l_o_ref
EXPORTING
i_f_banfn = im_banfn.
CALL METHOD l_o_ref->register_wf
EXPORTING
i_f_banfn = im_banfn.
ENDIF.
ENDMETHOD.
