Tree ALV in ABAP

Report

REPORT zab_rp_tree_alv.

TABLES: vbak.

DATA: gt_node TYPE TABLE OF snodetext,
      gs_node TYPE snodetext.
SELECT-OPTIONS: s_vbeln FOR vbak-vbeln.

IF s_vbeln IS INITIAL.
  MESSAGE 'Please select sale document' TYPE 'E'.
ELSE.
  SELECT a~vbeln, b~posnr,b~matnr,b~kwmeng,b~vrkme,c~maktx
    FROM vbak AS a LEFT OUTER JOIN vbap AS b
    ON a~vbeln = b~vbeln
    INNER JOIN makt AS c
    ON b~matnr = c~matnr
    INTO TABLE @DATA(lt_final)
    WHERE a~vbeln IN @s_vbeln.
ENDIF.

gs_node-type = 'T'.
gs_node-name = 'Sale Document'.
gs_node-tlevel = '1'.
gs_node-nlength = '20'.
gs_node-color = '3'.
APPEND gs_node TO gt_node.
CLEAR:gs_node.



LOOP AT lt_final INTO DATA(lr_final).


  gs_node-name = 'VBELN'.
  gs_node-tlevel = '2'.
  gs_node-nlength = '20'.
  gs_node-color = '3'.
  gs_node-text = lr_final-vbeln.
  gs_node-tlength = '20'.
  gs_node-tcolor = '6'.
  APPEND gs_node TO gt_node.
  CLEAR:gs_node.

  gs_node-name = 'SALE ITEM'.
  gs_node-tlevel = '3'.
  gs_node-nlength = '20'.
  gs_node-color = '3'.
  gs_node-text = 'MATERIAL NUMBER'.
  gs_node-tlength = '20'.
  gs_node-tcolor = '6'.
  APPEND gs_node TO gt_node.
  CLEAR:gs_node.


  gs_node-tlevel = '4'.
  gs_node-text = lr_final-posnr.
  gs_node-tlength = '20'.
  gs_node-tcolor = '3'.
  gs_node-text1 = lr_final-matnr.
  gs_node-tlength1 = '20'.
  gs_node-tcolor = '6'.
  APPEND gs_node TO gt_node.
  CLEAR:gs_node.

  gs_node-name = 'MATERIAL NUMBER'.
  gs_node-tlevel = '5'.
  gs_node-nlength = '20'.
  gs_node-color = '3'.
  gs_node-text = 'DESCIPTION'.
  gs_node-tlength = '20'.
  gs_node-tcolor = '6'.
  APPEND gs_node TO gt_node.
  CLEAR:gs_node.

  gs_node-tlevel = '6'.
  gs_node-text = lr_final-matnr.
  gs_node-tlength = '20'.
  gs_node-tcolor = '3'.
  gs_node-text1 = lr_final-maktx.
  gs_node-tlength1 = '20'.
  gs_node-tcolor1 = '6'.
  APPEND gs_node TO gt_node.
  CLEAR:gs_node.
ENDLOOP.


CALL FUNCTION 'RS_TREE_CONSTRUCT'
  TABLES
    nodetab            = gt_node
  EXCEPTIONS
    tree_failure       = 1
    id_not_found       = 2
    wrong_relationship = 3
    OTHERS             = 4.
CALL FUNCTION 'RS_TREE_LIST_DISPLAY'
  EXPORTING
    callback_program = sy-cprog.

Input

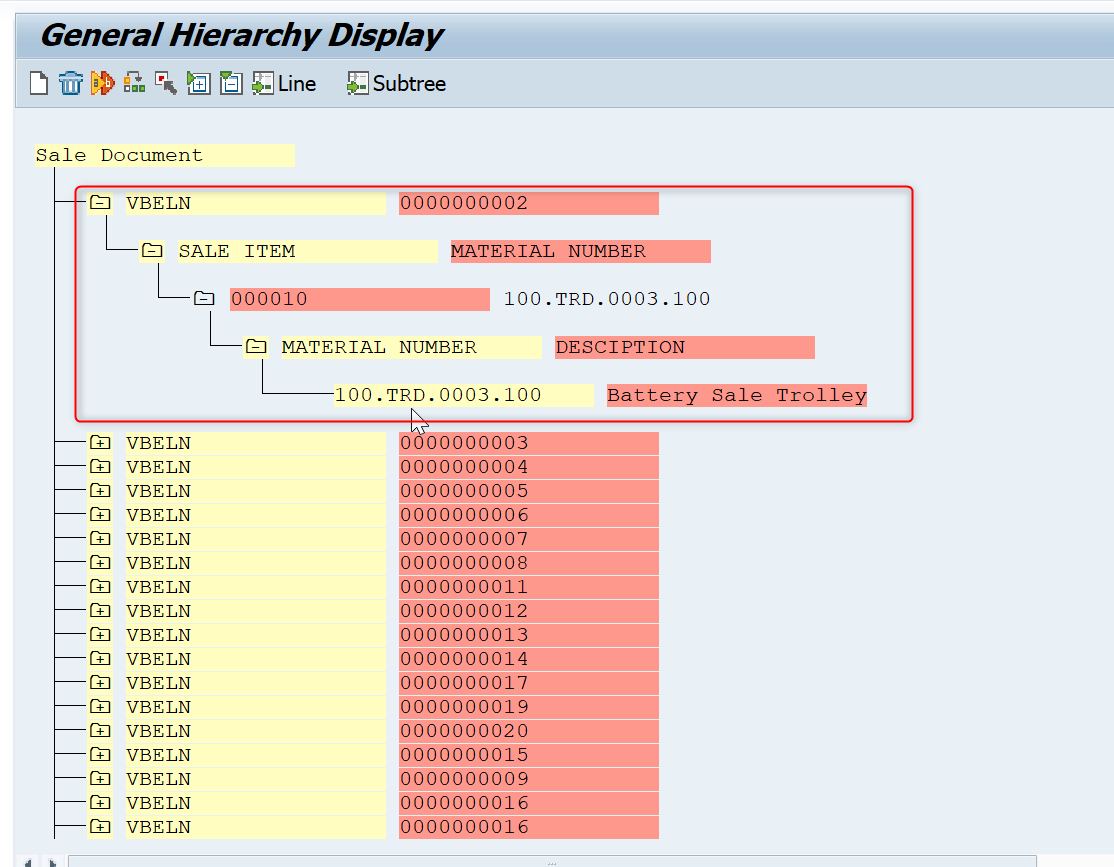

Output


******************************Thank You***************************
